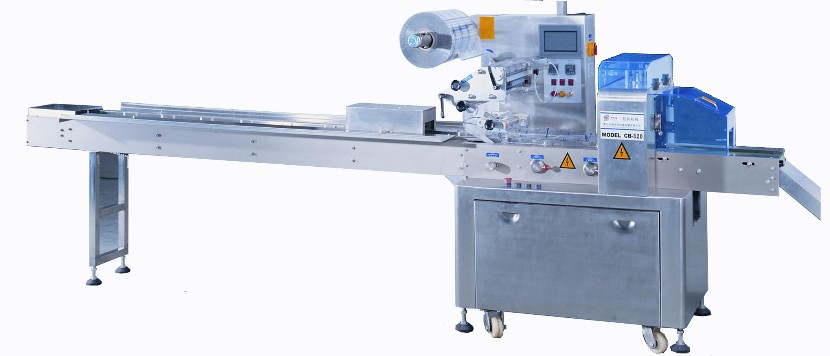

GP-320 Horizontal packaging machine stainless

Horizontal Packaging Machines

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Product Description

Features

Dual frequency conversion control, bag length can be set and cut in one step, saves time and film.

Interface features easy and quick setting for better operation.

Self failure diagnosis, clear failure display.

High sensitivity photoelectric eye colour tracing numerical input for cutting/sealing position for extra accuracy.

Positioned stop function without the knife sticking or wastage of film.

Temperature independent PID control, more suitable for packaging different materials.

Simple driving system, reliable working, convenient maintenance.

All controls through software, easy for function adjusting and technical upgrade.


Scope of application

Applicable to the pillow packaging of biscuit, instant noodle, egg roll, ice cream, soaps, drug, hardware bags, paper box, tray etc, kinds of machine-made articles.






Technical Specification

Max width of packing film 320mm
Bag size L(80-300)*W(50-150)*H(3-50)mm
Max outer diameter <300mm
Packing film thickness 0.04-0.07mm
Packing speed 25-220 bag/min
Total power voltage 2.75KW/220VAC
Size (lxWxH) (L)3980*(W)860*(H)1580
Weight 920 Kg
Optional collocate Printer,Gas Charging device,Feeder,Tidier
