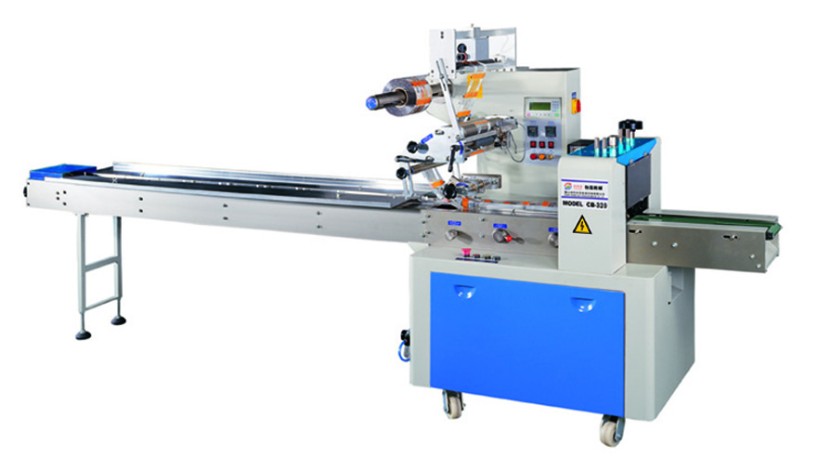

GP-320 Horizontal packaging machine
Horizontal Packaging Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Product Description
Features
Dual frequency conversion control, bag length can be set and cut in one step, saves time and film.
Interface features easy and quick setting and operation.
Self failure diagnosis, clear failure display.
High sensitivity photoelectric eye colour tracing numerical input for cutting and sealing position for extra accuracy.
Positioned stop function without the knife sticking or wastage of film.
Temperature independent PID control, more suitable for packaging different materials.
Simple driving system, reliable working, convenient maintenance.
All controls operational through software, easy for functionality, adjusting and technical upgrade.
Scope of application
Applicable to the pillow packaging of biscuit, instant noodle, egg roll, ice cream, soaps, drug, hardware bags, paper box, tray etc, kinds of machine-made articles.
Technical Specification
| Max width of packing film | 320mm |
| Bag size | L(80-300)*W(50-150)*H(3-50)mm |
| Max outer diameter | <300mm |
| Packing film thickness | 0.04-0.07mm |
| Packing speed | 25-220 bag/min |
| Total power voltage | 2.75KW/220VAC |
| Size (lxWxH) | (L)3980*(W)860*(H)1580 |
| Weight | 920 Kg |
| Optional collocate | Printer,Gas Charging device,Feeder,Tidier |
