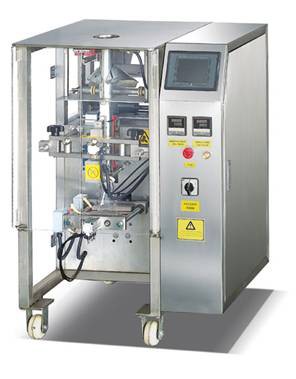

GP-320 & GP320H Packaging Machine
Vertical Packing Machines > Vertical Packing Machines
Technical characteristics:
1. PLC control system,wide version touch screen, convenient to operate
2. Film drawing down system and horizontal sealing controlled by servo motor
3. Perfect alarm system to reduce waste
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it IS equiped with feeding and measuring equipment
Application
Suitable to pack granule, powder, solid state materials, such as coffee, potato chips, puffey food, peanut, nuts, popcorns, salt, sugar, tea, seeds, etc
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Specification
| Model | GP-320 | GP-320H |
| Capacity | Max 70bags/min | Max 100bags/min |
| Bag size | Width:50-150mm Length:80-200mm |
Width:60-150mm Length:50-200mm |
| Max film width | Max 320mm | Max 320mm |
| Film thickness | 0.04-0.09mm | 0.04-0.9mm |
| Power source | 2KW 220V 50HZ | 2KW 220V 50HZ |
| Air consumption | 0.8Mpa 0.25m3/min | 0.8Mpa 0.25m3/min |
| Weight | 300kg | 350kg |
