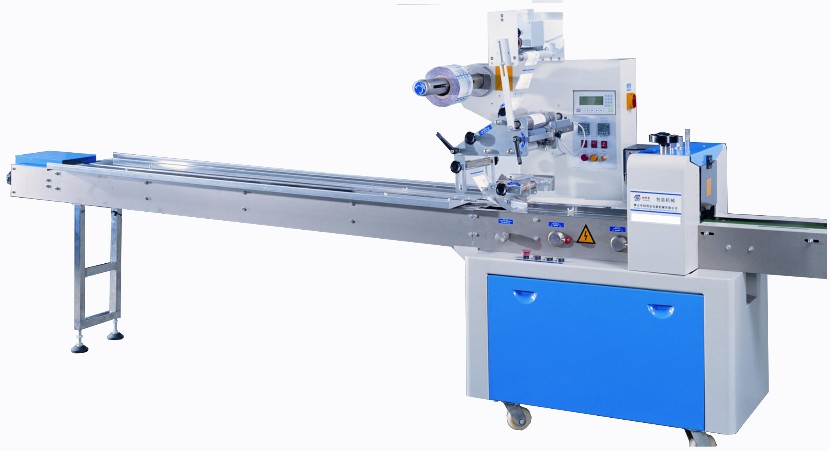

GP-100 Horizontal packaging machine

Horizontal Packaging Machines

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Product Description

Features

Dual frequency conversion control, bag length can be set and cut in one step to save time and film.

Interface features easy and quick for setting and operation.

Self failure diagnosis, clear failure display.

High sensitivity photoelectric eye colour tracing numerical input of cutting, sealing position for extra accuracy.

Positioned stop function without the knife sticking or wastage of film.

Temperature independent PID control, more suitable for packaging different materials.

Simple driving system, reliable working, convenient maintenance.

All the controls are computer driven making it easy for adjusting functions and technical upgrade.



Scope of application

Applicable to the pillow packaging of biscuit, instant noodle, ice cream, injector bearing etc, bar, block and round articles.




Technical Specification

Max width of packing film =220mm
Bag size (50-165)×(30-100) ×(30-40)mm
Packing speed 30-200 bag/min
Total power voltage 220VAC - 50HZ
Power 2.75kw
Size (lxWxH) 1150×1795×11650 mm
Weight 550 Kg
Optional collocate Printer,Gas Charging device,Feeder,Tidier
