GM-A6
Sales team
| ITEM | GM-A6 |
| Depends on bottle design | 4000 - 6000 PCS/H |
| Volume | 0.1-2L |
| Body diameter | < 100mm |
| Height | < 310mm |
| Neck diameter | 30mm |
| Cavity | 6 |
| Mold thickness | 240mm |
| Mold size | 800*240*360mm |
| Electrical power source | 380V/220V--- 50/60HZ 3 Phase |
| Rated power | 73kw |
| Realistic power use | 22kw |
| HP air compressor | 4.0m3/min 3.0Mpa |
| LP air compressor | 1.0m3/min 1.0Mpa |
| Air tank | 1.0m3 3.0Mpa |
| Air dryer | 4.0m3/min 3.0Mpa |
| Water chiller | 5HP |
| Size (L*W*H) | 4000*2000*1800mm |
| Weight | 5200kg |

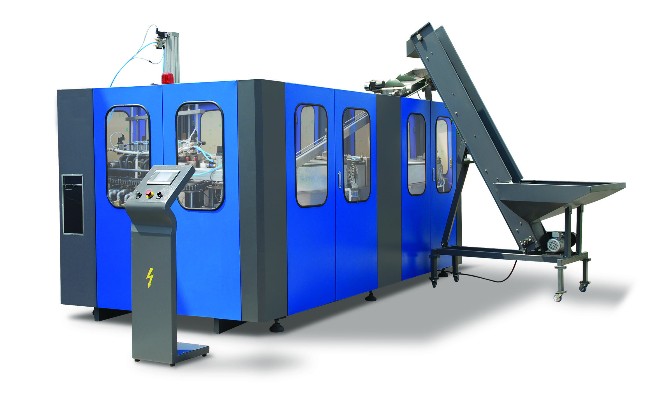

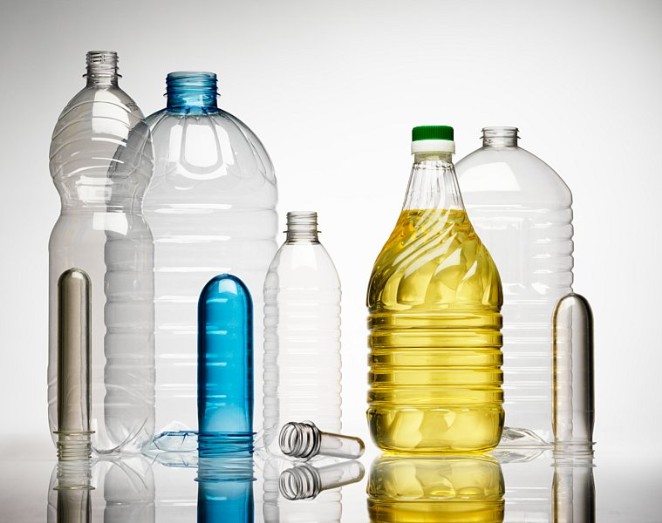

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.
*Stable performance with advanced PLC.
*Conveying preforms automatically with conveyor.
* Strong penetrability and swift distribution of the heater by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
* Strong clamping force with high pressure and double crank links to lock the mold.
* Low cost, high efficiency, easy operation, easy maintenance, with automatic technological process.
* Ideal effect of the chilling with the chilling system.
* Easy installation and starting
* Low rejection rate: less than 0.2 percent.
