GM-A1 / A1 5
Sales team
| ITEM | GM-A1 (2L) | GM-A1 (5L) |
| Depends on bottle design | 800 - 1200 PCS/H | 500 - 800 PCS/H |
| Volume | 0.1-2L | 2-5L |
| Body diameter | < 100mm | < 175mm |
| Height | < 310mm | < 310mm |
| Neck diameter | < 30mm | < 45mm |
| Cavity | 1 | 1 |
| Mold thickness | 240mm | 260mm |
| Mold size | 250*240*360 | 250*260*360 |
| Electrical power source | 380V/220V--- 50/60HZ 3 Phase | 380V/220V--- 50/60HZ 3 Phase |
| Rated power | 25kw | 25kw |
| Actual power use | 7kw | 10kw |
| HP air compressor | 1.2m3/min3.0Mpa | 1.4m3/min3.0Mpa |
| Air dryer | 1.0m3/min 3.0Mpa | 2.0m3/min 3.0Mpa |
| Water chiller | 3HP | 3HP |
| Size (L*W*H) | 1500*1200*1800mm | 2000*1200*1800mm |
| Weight | 1500kg | 1800kg |

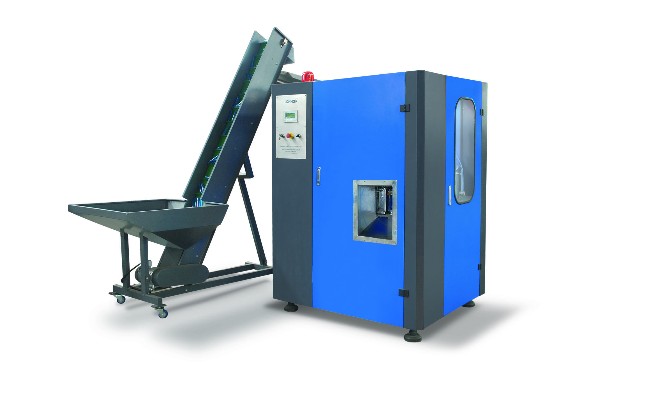

GM-A1Full automatic blow molding machine is suitable for making PET

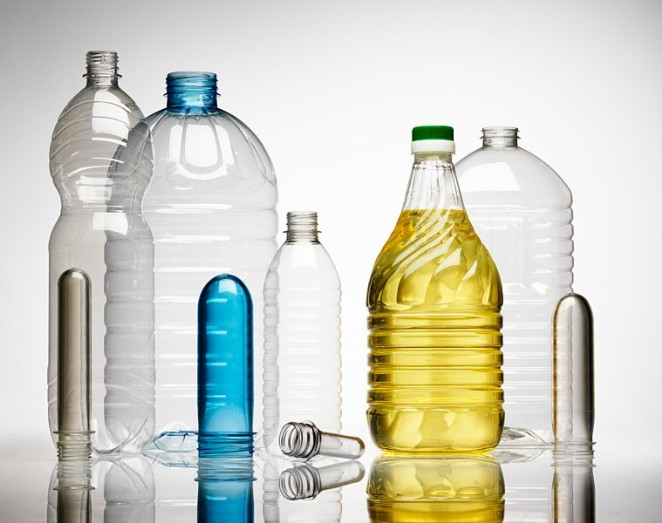

plastic containers ,It can blow all kinds of bottles in shapes: carbonated bottle, mineral water bottle, pesticide bottle, cosmetics bottle, and other packing containers. it has saved the cost to the maximum extent; it has lower rejection rate, higher capacity, and more stable performance than the semi-automatic one, and moreover, run smoothly and easy for operating.
*Stable performance with advanced PLC.
*Infrared oven, quartz lamp to heat the PET tube.
*No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
*Low cost, high efficiency, easy operation, easy maintenance, with automatic technological process. Strong clamping force with high pressure and double crank links to lock the mold.
