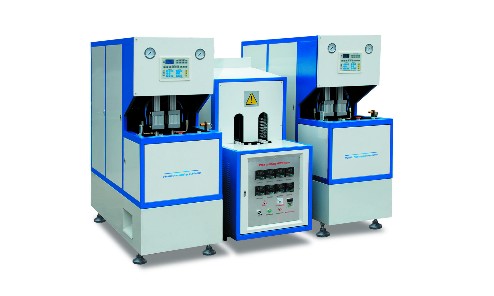

GM-A1Full automatic blow molding machine is suitable for making PET
plastic containers ,It can blow all kinds of bottles in shapes: carbonated bottle, mineral water bottle, pesticide bottle, cosmetics bottle, and other packing containers. it has saved the cost to the maximum extent; it has lower rejection rate, higher capacity, and more stable performance than the semi-automatic one, and moreover, run smoothly and easy for operating.
*Double crank to adjust mould, heavy locking mould, stable and fast
*Infrared oven
*The air system has been devided into two parts: pneumatic action and bottle blowing to meet the different requirements for the action and blowing. It can provide sufficient ans costant high pressure for blowing large irregular shaped bottles.
*The machine is also equiped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated on step by step mode or semi automatically
ITEM | GM-8Y | |
Volume | L | 1-2 |
Approximate output | pcs/h | 1400-1800 |
Height | mm | < 350 |
Preform inner diameter | mm | 9-38 |
Max mold plate diameter (L*W) | mm | 350*380 |
Max mold thickness | mm | 180 |
Clamping force | kn | 45 |
Mold opening stroke | mm | 160 |
Main machine (L*W*H) | mm | 1600*600*1610 |
Main machine weight | kg | 500 |
Heater (L*W*H) | mm | 1870*630*1450 |
Heater weight | kg | 250 |
Rated power | kw | 17.5 |
