FEATURES:

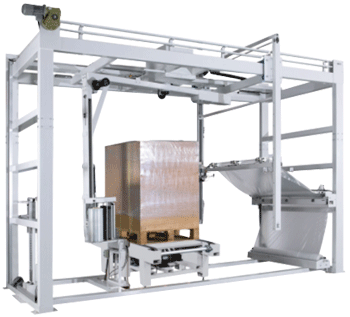

• The load is transferred to the wrapping area via a power or chain conveyor.

• The rotating arm machine begins the wrapping cycle automatically by rotating the film carriage around the load which stands and does not rotate.

• After wrapping, top sheet dispenser which on the side of the rotating tower, will add one sheet to the top load and then continually wrapping up and down.

• At the end of wrapping, the film tail is automatically cut and brushed down. Then load move away from wrapping area. The machine is ready for next load with film clamp.

• Rotating arm machine is better for heavy, light, fragile or unstable loads

• with PLC control

• Auto cut,brush down and clamp device.

• Wrapping failure detector

No film or broken film detector

Model	BW-1225HMF
Power supply	3 Ø 220, 380, 415, 440V(50/60Hz)
Wrapping height	2100mm
Conveyor height	850mm
Load size	L 1300 xW1100 xH 1530 mm (10layers), L 1300 x W1100 x H 1155 mm (7 layers)
Film carriage speed	0~ 8 m /min. (adjustable)
Rotation arm speed	0~30 rpm (adjustable)
Capacity	over 33 pallets/hr for 7 layers, over 22 pallets/hr for 10 layers.
PE film spec	L 1500 m x W 500 mm x t 0.023 mm

Note: Specifications subject to change without notice.
