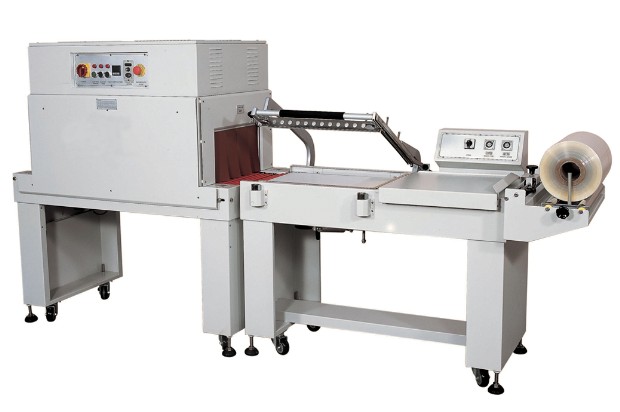

Combo Sealer and Shrink Tunnel GPK-5545T-C

Shrink Wrapper and Heat Tunnel > Combo L Seal and Heat Tunnel

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Technical features

  • High temperature and non stick L bar sealing knife, no smoke or burnt plastic. Sealed part is tidy and clean.


  • Conveyor belt is adjustable for speed.


  • There is a manual/auto switch. When choosing automatic the whole sealing action is controlled by a cylinder automatically with a fast packing speed.


  • Safety protection device is set on the sealer, in case of the sealing knife contacting hands.



Technical features of shrink tunnel

  • Saves the high temperature on the heating wire, the fan circulates air inside the tunnel increasing the temperature very fast with small amount of heat loss.


  • Output can reach to 20000-30000per day.


  • Conveyor rollers are covered by silica tubes, which guarantee a long life.


  • Triple hot insolate layers make sure the average power is only 4-5kw.


  • Conveyor speed is controllable in 1-10m per minute.


  • Suitable for PVC, POF, PP film's.



Technical Specification

Model GPK-5545T-C
Machine dimensions LxWxH (mm) 2569×764×1612
Machine packing size LxWxH (mm) 400×300×200
Machine sealing size LxWxH (mm) 550X450
Packing speed (pcs/h) 800-1200
Netweight (kg) 285
Power (kw) 5.5
Power supply 110V/220V 50/60Hz
