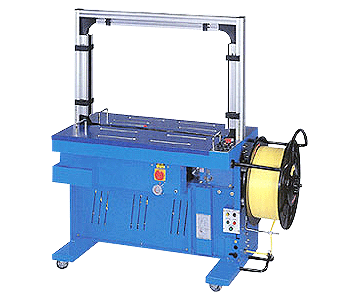

Automatic Strapping Machines with Auto Strap Feeding BW-0860BA

Carton Sealing Machines > Automatic Strapping Machines

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Features

  • Aluminum Arch-all in one design, Prosperity in the future, To increase the width or the height, no need to change the whole set, only add some parts to the original. Easy and convenient, Time saved, money saved.


  • The guide of the brush is a big help to strap the package at the proper position. Brilliant performance.


  • Auto strap feeding-to make strap threading easier and faster to accomplish.


  • To eliminate the trouble of manual strap threading.


  • When strap not setting up or failure, this device ensures accurate strap feeding again, be ready to strap.


  • Make operation easy, time saved, labor savings.


  • The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.


Precision Structure:
Main machine's component is made of aluminum alloy. Control system is compatible. Add on safety devices, built for 24 hrs continuous operation.

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

  • Removable aluminum arch.


  • Decrease the dimensions of the package and transportation cost.







kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

Technical Specification

Model BW-0860BA
Power Supply 3 phase, 220V, 380V, 440V, 50/60Hz
Strap width 9,12,15,19mm
Tension adjustment (Max. over 90kgs)
Speed 2.4 sec./per cylcle
Power consumption 850W
Max. package size W850 x H600mm(W33.5 x H23.6inch)
Min. package size W100 x H30mm(W3.9 x H1.2inch)

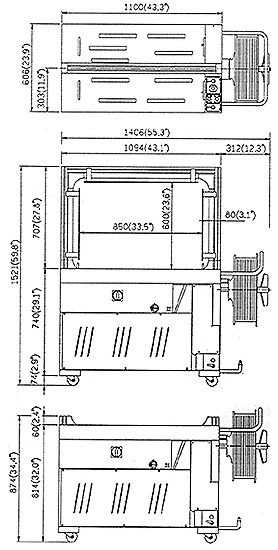

Machine size L1460 x W606 x H1521mm
L55.3 x W23.9 x H59.9inch
Net weight 250 Kg

Note: Specifications subject to change without notice.
