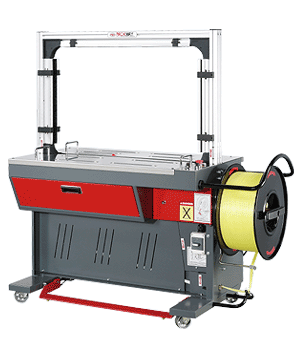

Automatic Strapping Machines with Alluminium Arch BW-0860B
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
The brush guiding mechanism ensures the strapping at the proper position and not to slant. Brilliant performance.
Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
Easy Maintenance:
No Greasing, Mechanism is stable and durable, Easy operation.
Tension Adjustment:
Can be adjustable at will, Max. tension is over 90 kgs.
Precision Structure:
Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
Easy loading or unloading:
To load or unload the strapping roll is convenient due to the dispenser is placed outside.
Extensive applications:
Can be independent operation or combine with other machines for unmanned production or Automatic Packaging Systems.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
- Removable aluminum arch.
- Decrease the dimensions of the package and transportation cost.
- Precisely strapping positions.
- Low damage.
Options:
- If the working height is between 730 to 800mm, the casters should be placed outside.
- Detection for strap not feeding to origin or arch properly. Detection for non-strap.
- The breaker for electric leakage and safety switch.
- Option for 406Ø or 280Ø dispenser.
- Available for PET/PP.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0860B |
| Power Supply | 1Ø 110V,220V (50 / 60Hz) 3Ø 220V,380V,415V,440V (50 / 60Hz) |
| Strap width | 9,12,15,19mm |
| Tension | 0~70kgs (Adjustable) |
| Speed | 2.4 sec./per strap (60Hz) |
| Power consumption | 850W |
| Max. package size | W850 x H600mm |
| Min. package size | W100 x H30mm |

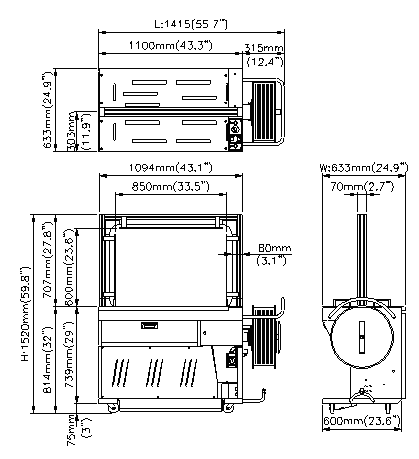

| Machine size | L 1471 x W 689 x H 1644 (mm) L 57.91”x W 27.13”x H 64.72” (inch) |
| Net weight | 220 Kg |
Note: Specifications subject to change without notice.
