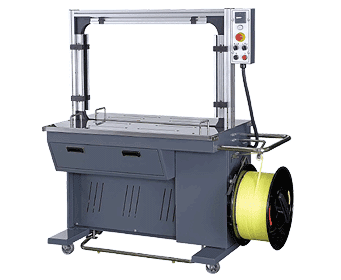

Automatic strapping machine with auto strap feeding- 9,12,15, 19mm (option) BW-0860 BAT
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
- Waist auto strap feeding-Easy strap loading
- Auto re-feed mechanism/strap to head detection switch
- PLC control,Mitsubishi-FX-1N40MR
- Easy access fold open table top-stainless steel
- Start standard ,foot pole,push button or table top roll switch-Simple to operate
- Safety interlocks on front doors and open table top
- Easy to operate and maintance
- Arch size: W 850 x H 600mm , strap width:9,12,15, 19mm (optian)
- Capacity:30 straps/min. at 60Hz
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0860BAT |
| Power Supply | 3 phase,220V,380V,415V,440V(50,60Hz) |
| Strap width | 9, 12, 15.5, or 19mm (option) |
| Tension | 0-70kgs |
| Cycle time | 30 straps/min at 60 Hz |
| Power consumption | 850W |
| Max. package size | W850 x H 600 mm |
| Min. package size | W 100 x H 30 mm |

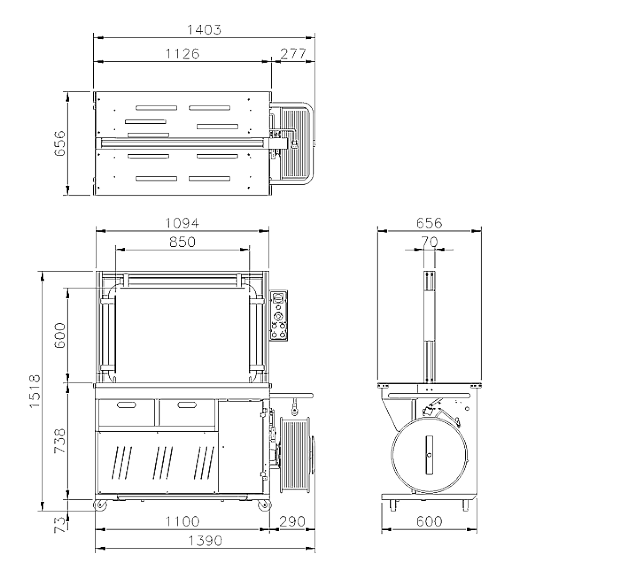

| Machine dimensions | L 1403 x W 656 x H 1518 mm |
Note: Specifications are subject to change without notice.
