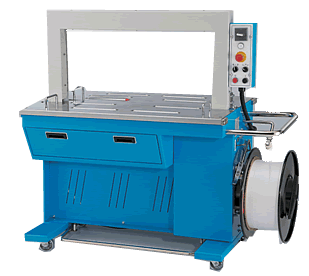

Automatic strapping machine with auto strap feeding - 5 mm BW-0840 BUAT
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
- Waist auto strap feeding -Easy strap loading
- Auto re-feed mechanism/strap to head detection switch
- PLC control,Mitsubishi-FX-1N40MR
- Easy access fold open table top-stainless steel
- Start standard, foot pole,push button or table top roll switch-Simple to operate
- Safety interlocks on front doors and open table top
- Arch size: W 850 x H 400mm , strap width: 5mm
- Capacity:30 straps/min. at 60Hz
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0840BUAT |
| Power Supply | 3 phase,220V,380V,415V,440V(50,60Hz) Single phase,110V,220V,240V(50,60Hz) |
| Strap width | 5 or 6 mm (option) |
| Tension | 0-36kgs |
| Cycle time | 30 straps/min at 60 Hz |
| Power consumption | 850W |
| Max. package size | W850 x H 600 mm |
| Min. package size | W 100 x H 30 mm |

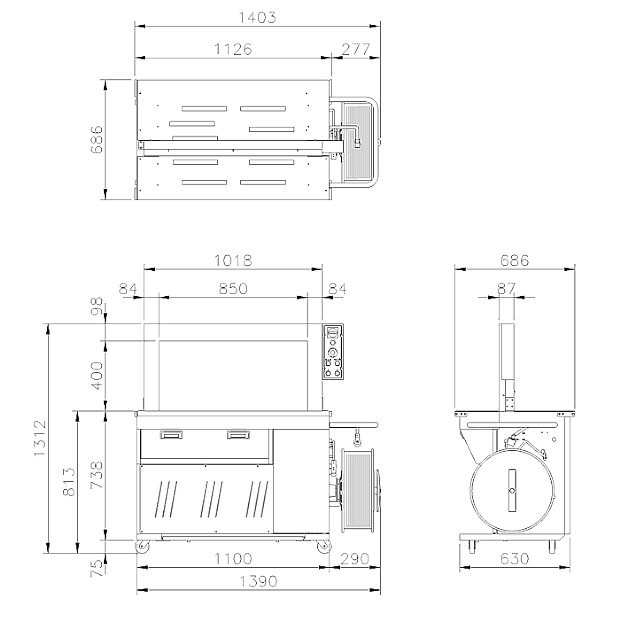

| Machine dimensions | L 1403 x W 686 x H 1312 mm |
Note: Specifications are subject to change without notice.
