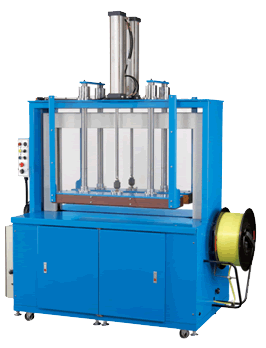

Automatic Strapping Machine with Air Pressure BW-2870AP
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
FEATURES
- Top press mechanism
- Stainless steel table top
- 2 air cylinders,dia .100 mm ,stroke: 550 mm
- Front & rear acrylic protect cover
Technical Specification
| Model | BW-2870AP |
| Power Supply | 3 phase 220V,380V,415V,440V(50/60Hz) |
| Arch size | W 1250 x H 700 mm |
| Strap width | 9,12,15, 19 mm (option) |
| Tension | max.70 kgs (100 kgs option) |
| Pressure | 550kgs (made on request) |
| Cycle time | 2.4 sec/strap (exclude time of top press up and down) |

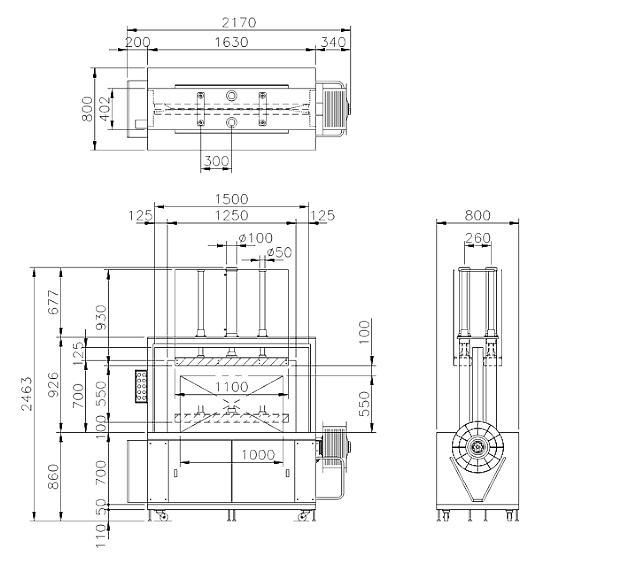

| Machine dimensions | L 2170 x W 800 x H 2463 mm |
Note: Above Spec. for Reference, Design On Request..
