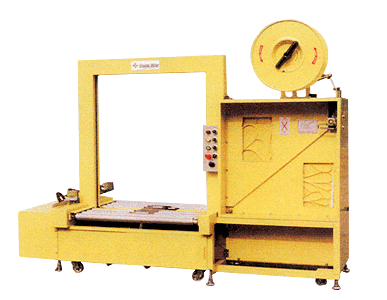

Automatic Strapping Machine, Low Roller Drive BW-0860LS2R
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
With better design-The pack table is reopening for easy maintenance.
The position of strapping can be adjusted by moving the location of sensors.
Precision Structure:
Main machine's component is made of alumium alloy. Control system is compatible. Add on a safety device, built for 24 hrs continous operation.
Strengthen the top roller driven for stable effect, the highest-quality and long-lasting durability.
Can be independent operation or combine with the conveyors for auto packaging and unmanned strapping system.
Auto strapping, tighten, cut and stick
Heater-type welding strap
Arch set
Two sensor sets(can choose strap/non-strap or 1 strap / 2straps)
Top roller driven
Brake with start / stop in the conveyor
Optional Equipment
Alarm in the feeding-strape device.
Top belt driven
Arch motor
PLC control(Mitsubishi made)
PET strap
Top press plate.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0660YTR |
| Power Supply | 3phase, 220V, 380V, 440V, 50/60Hz, 850W 1phase, 110V, 220V, 50/60Hz, 900W |
| Strap width | 9, 12, 15.5, or 19mm |
| Tension | 10(kg) 20 LBS. To 90(kg) 180 LBS. |
| Cycle time | 2.4sec./ cycle, 1500 Straps/Hr. |
| Max. package size | Governed By Size Of Arch |
| Min. package size | W30 x H100mm |
| Machine dimensions | L1425 x W630 x H1760 (mm) |
| Net weight | 320 Kg |
Note: Specifications are subject to change without notice.
