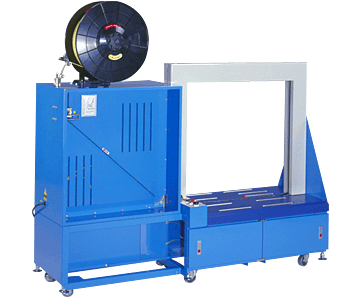

Automatic Strapping Machine, BW-08601L
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
Easy Maintenance:
No Greasing, Mechanism is stable and durable, Easy operation.
Tension Adjustment:
Can be adjustable at will, Max. tension is over 90 kgs.
Precision Structure:
Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
Easy loading or unloading:
To load or unload the strapping roll is convenient due to the dispenser is placed outside.
Extensive applications:
Can be independent operation or combine with other machines for unmanned production or Automatic
Packaging Systems.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0861L |
| Power Supply | 3phase, 220V, 380V,440V, 50/60Hz |
| Strap width | 9, 12, 15.5, or 19mm |
| Tension | Adjustable |
| Cycle time | 2.4sec./ per cycle |
| Power consumption | 850W |
| Max. package size | W850 x H600mm(W33.5 x H23.6 inch) |
| Min. package size | W850 x H600mm(W33.5 x H23.6 inch) |

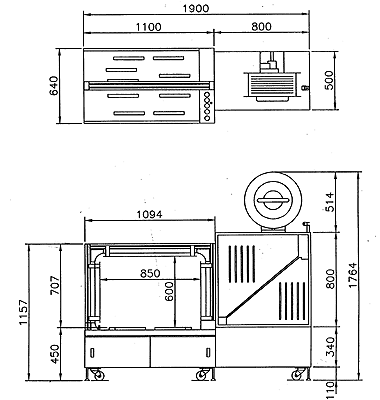

| Machine dimensions | L1900 x W640 x H1764(mm) L74.8 x W25.2 x H69.4(inch) |
| Net weight | 300 Kg |
Note: Specifications are subject to change without notice.
