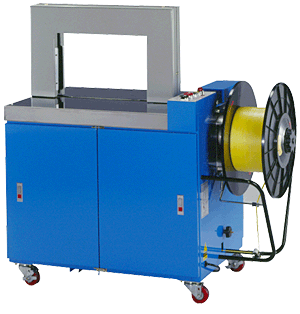

Automatic Strapping Machine, BW-0430A
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
Easy Maintenance:
No Greasing, Mechanism is stable and durable, Easy operation.
Tension Adjustment:
Can be adjustable at will, Max. tension is over 90 kgs.
Precision Structure:
Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
Easy loading or unloading:
To load or unload the strapping roll is convenient due to the dispenser is placed outside.
Extensive applications:
Can be independent operation or combine with other machines for unmanned production or Automatic
Packaging Systems.
The machine is durable ingenions designed and less space.
It is cost efficiency for using 6mm P.P. Strape.
It is suitable for small cartons.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical Specification
| Model | BW-0430A |
| Power Supply | 3phase, 220V, 380V, 440V, 50/60Hz |
| Strap width | 9, 12, 15.5, or 19mm |
| Tension | Adjustable |
| Cycle time | 2.4sec./ per cycle |
| Power consumption | 850W |
| Max. package size | W450 x H300mm(W17.7 x H11.8 inch) |
| Min. package size | W100 x H30mm(W3.9 x H1.2 inch) |

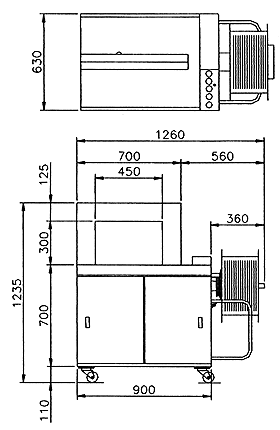

| Machine dimensions | L1260 x W630 x H1235(mm) L49.6 x W24.8 x H48.6(inch) |
| Weight | 250 Kg |
Note: Specifications are subject to change without notice.
