Automatic Strapping Machine 5mm BW-0860BU
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
- Auto re-feed mechanism/strap to head detection switch
- PLC control,Mitsubishi-FX-1N40MR
- Easy access fold open table top-stainless steel
- Start standard ,foot pedal,push button or table top switch-Simple to operate
- Safety interlocks open table top
- Arch size: W 850 x H 600mm , strap width: 5mm
- Capacity:30 straps/min. at 60Hz
Technical Specification
| Model | BW-0860BU |
| Power Supply | 3 phase,220V,380V,415V,440V(50,60Hz) Single phase,110V,220V,240V(50,60Hz) |
| Strap width | 5 or 6 mm (option) |
| Tension | 0~36kgs |
| Cycle time | 30 straps/min at 60 Hz |
| Power consumption | 850W |
| Max package size | W850 x H600mm |
| Min package size | W100 x H30mm |

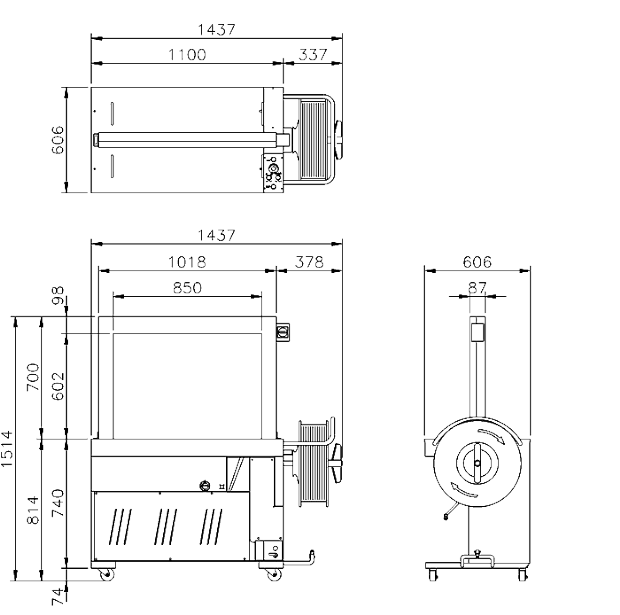

| Machine dimensions | L 1437 x W 606 x H 1514 mm |
Note: Specifications are subject to change without notice.
