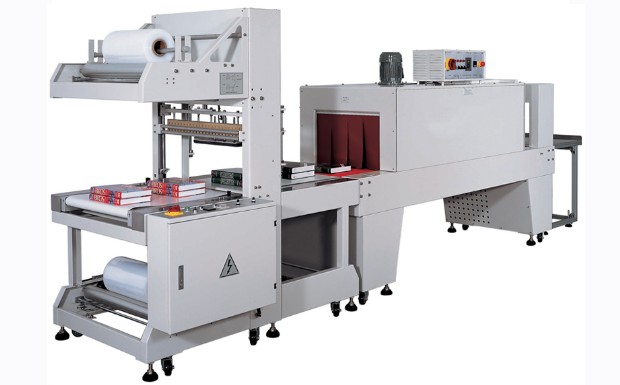

Automatic Shrink Wrapper GPK-6030Z

Shrink Wrapper and Heat Tunnel > Frontal Feeding Automatic Sleeve Wrapper

kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk


Technical features

GPK-6030Z is an Automatic Straight Feed-in Sleeve Wrapper, adopts the unique straight design, impact structure to occupy small space and is affective if the work place is limited by size. There is no need to adjust the direction of products in-feeding. It has not limit on the length of products. It can be operated independent also connected the production line for products feeding, film wrapping, film cutting, shrinking, cooling and forming automatically.



Basic parts

  • GPK-6030Z adopts a unique design for the straight feed-in.
  • Has a PLC of Mitsubishi, realize the integration with the mechanic, electricity and pneumatic.
  • This machine adopts linear in-feed, has no limitation for the length of the products.
  • Compared with the side feed-in machine, this machine has its advantages of the speed and connection.
  • It has a specially designed sealing blade which results in a perfect sealing line, avoids plastic sticking to cutter.
  • Sensors ensure the accurate location.
  • Durable conveying belt increases the conveying speed controlled by a transducer.
  • Reasonably designed with control box to ensure convenient operation.
  • Three horizontal sensors for inducing different size products.
  • There is a pressure pad at the back of the cutter, holding the product in place.
  • According to different products' packing requirement, two longitudinal sealing cutter for four sided sealing PE packaging can be added.
  • GPK-6040Z adopts double imported blowing motors to assure the hot air inside the tunnel is distributed evenly, making shrink effect is more compact.
  • The adjustable hot air guide flow frame inside the tunnel makes for more energy saving.
  • Choose between solid steel roller covered, silicone gel pipe or chain conveying
  • TAIAN transducer controls conveying speed, step-less speed control.
  • This machine can be changed to a fully (PE) wrapper according to special requirement



Technical Specification

Model GPK-6030Z
Machine dimensions LxWxH (mm) 16509201895
Machine packing size LxWxH (mm) UnlimitedxW+H<700
Sealing cutter size/Tunnel size LxWxH (mm) 700
Infeed conveyor height (mm) 850 +/-50
Sealing temperature/shrink temperature 0-200
Packing speed (pcs/min) 8-22
Net weight (kg) 465
Power (kw) 2
Power supply 220V/380V 50/60Hz
Air pressure 6.0
Film used PE, PVC
