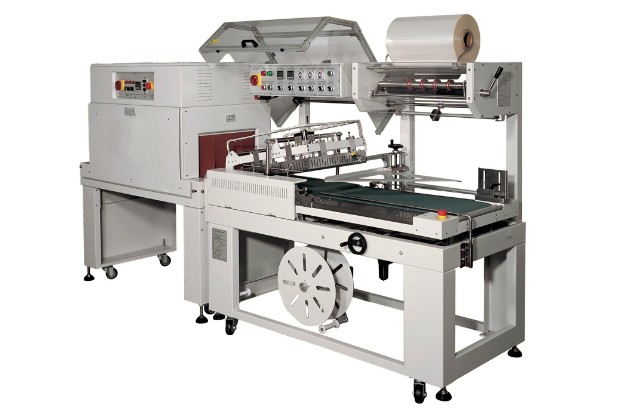

Automatic L Bar / Vertical L-Bar Shrink Sealer GPK-5545TBA
Shrink Wrapper and Heat Tunnel > Automatic L Bar / Vertical L-Bar Shrink Sealer
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Technical features
- GPK-5545TBA It is a fully automatic L sealer, widely used in pipelining work for large quantity packaging with high work efficiency, installed with pin hole device, adjustable film feeding system and adjustable conveying table, meets different requirements for different products GPK-5545TBB has a kissing device for packing the small products.
- Adopts heat resistant alloy cutter plated Teflon, results in good sealing, without melting the film and any smoke pollution.
- Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products, it is also easy to pack them.
- The length of film feeding, controlled by magic eye and counter, also fixes an inductive motor for collecting wasted film automatically.
- When packing different size products it is simple to adjust without any mould changes or bag making devises, this machine is versatile for an assortment of sizes
- OMRON digital temperature controller with PID function, sealing temperature is extremely sensitive and accurate, can set temperature optionally, the cutter itself has a protective function to avoid damaging the products.
- The machine has a safety glass cover with alarm function
- The machine can be connected to a production line with no extra operators required.
Technical Specification
| Model | GPK-5545TBA |
| Machine dimensions LxWxH (mm) | 1700×960×1400 |
| Machine packing size LxWxH (mm) | =500 |
| Machine sealing size LxWxH (mm) | 550X450 |
| Packing speed (pcs/h) | 15-25 |
| Netweight (kg) | 225 |
| Power (kw) | single phase 110V/220V 50/60Hz |
| Power supply | single phase 110V/220V 50/60Hz |
| Air pressure | 5.5 |
