Glopak - Filling and Packing Machines

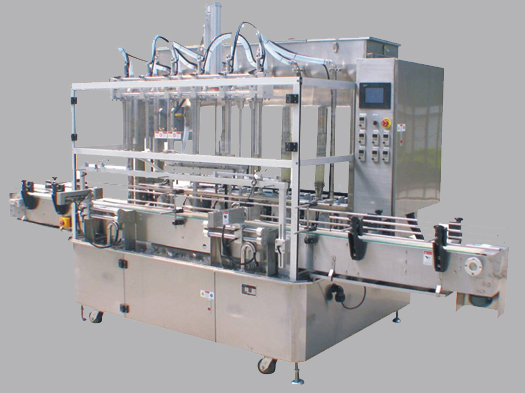

FIL 840

Application
This machine is designed to handle from water to high viscosity products, especially for viscid and foaming products in food, beverage, pharmaceutical and biotechnology industry.

Features
1. Machine construction stainless steel 304
2. Each rotary lobe pump is driven by an individual motor for high accuracy liquid filling.
3. PLC combined with touch screen control system. Filling volume can be easily adjusted separately.
4. No change parts are required for different bottle sizes
5. Diving type system prevents spillage during filling.
6. No bottle no filling safety device
7. 20 job memory for easy recall
8. You can choose type A, B or C type for different filling range.

Optional
1. Liquid tank agitator
2. Hot filling
3. Infeed & outfeed turntable
4. All contact parts made from stainless steel 316
5. Safety transparent covers for safe operation circumstance and dust-proof

FIL 860

Application
This machine is designed to handle from water to high viscosity products, especially for viscid and foaming products in food, beverage, pharmaceutical and biotechnology industry.

Features
1. Machine construction stainless steel 304
2. Each rotary lobe pump is driven by an individual motor for high accuracy liquid filling.
3. PLC combined with touch screen control system. Filling volume can be easily adjusted separately.
4. No change parts are required for different bottle sizes
5. Diving type system prevents spillage during filling.
6. No bottle no filling safety device
7. 20 job memory for easy recall
8. You can choose type A, B or C type for different filling range.

Optional
1. Liquid tank agitator
2. Hot filling
3. Infeed & outfeed turntable
4. All contact parts made from stainless steel 316
5. Safety transparent covers for safe operation circumstance and dust-proof

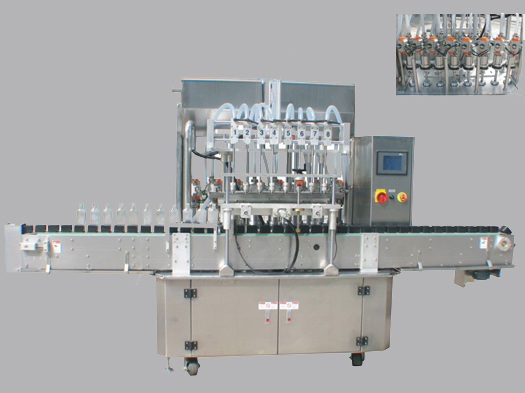

FIL 880

Application
This machine is designed to handle from water to medium viscosity products in food, beverage, pharmaceutical and biotechnology industry.

Features
1. Machine construction stainless steel 304
2. Piston ring use different material for different applications.
3. PLC combined with touch screen control system.
4. Filling volumes can be roughly adjusted together for all the pumps and make fine adjustments individually for each pump.
5. No change parts are required for different bottle sizes
6. Bottom diving filling type avoids foam during filling.
7. No bottle no filling safety device
8. You can choose type A, B or C type for different filling range.

Optional
1. Liquid tank agitator
2. Hot filling
3. Infeed & outfeed turntable
2. Safety transparent cover for safe operation circumstance & dust-proof
4. All contact parts made from stainless steel 316

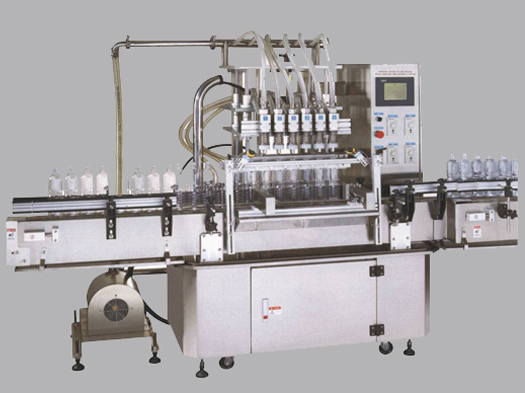

FIL 805

Application
This machine is designed with the principle of vacuum suction, which can achieve fill level consistency effectively. This machine is very suitable for various low viscosity or rich foaming products, which makes them ideal filling machines for the condiment, wine, pharmaceutical and daily chemical use.

Features
1. Machine construction stainless steel 304
2. PLC combined with touch screen control system.
3. Filling level is determined by the depth of the overflow mouth inside the neck of the bottle so the filling volume can be adjusted easly.
4. No change parts are required for different bottle sizes
5. Overflow filling system prevents spillage during filling
6. You can choose type A, B or C type for different filling range.

Optional
1. Infeed and outfeed conveyor
2. Safety transparent cover for safe operation circumstance & dust-proof
3. All contact parts can be made from stainless steel 316

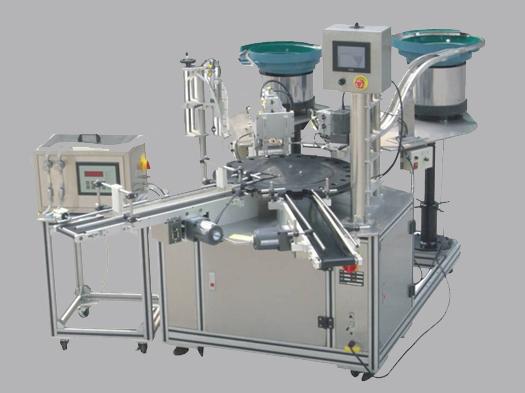

FIL 9888

Application
This small filling and capping machine is designed for filling application of small volume and invariable bottle size. This machine combines filling and capping in one body, ensures compact size and practicality.

Features
1. Machine construction stainless steel 304
2. Variable filling device and filling nozzle can be custom made according o the filling material property and speed requirement
3. Rotary cam driver separates and conveys bottles
4. PLC combined with touch screen control system.
5. No bottle, no fill, no cap, no capping

Optional
1. Variable filling device (liquid, ointment, powder, granule etc)
2. Automatic air spray bottle cleaning system
3. Perfume bottle automatic steel ball dropping station
4. Automatic plug feeder and inserter station
5. Automatic cap feeder and placement station
6. Infeed and outfeed turn table
7. All contact parts from stainless steel 316
8. Two lines bottles infeed, two lines bottles outfeed for double capacity
9. Thermal seal for bottle mouth

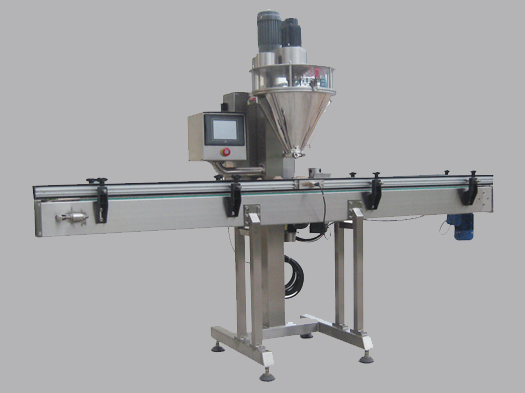

GL-2B

This machine was designed for automatic can feeding, weighing, filling and failed packs detect & delete. It�s suitable for packaging powdery & grainy product, such as: milk powder, monosodium glutamate, solid beverage, white sugar, dextrose, fodder, coffee power, solid medicament, powdery & grainy additive, dyestuff, etc.

Metering mode: Auger rotation filling (Applicable to canned packing for granule or powder)
Size of the container: Cylindrical containerf50�200MM High 50-350MM
Packing weight: 10-5000g (The screw attachment is to be changed)
Packaging accuracy: = 100g, =�1g; >100g,=�1%
Filling rate: 10-50 cans/min
Cans supply:
Power supply : 3P 380V/1P 220V 50~60HZ
Total power: 2KW
Total weight: 300kg
Overall Dimensions: 2500�800�2200MM
Hopper Volume: 50L

.
