Glopak - Filling and Packing Machines

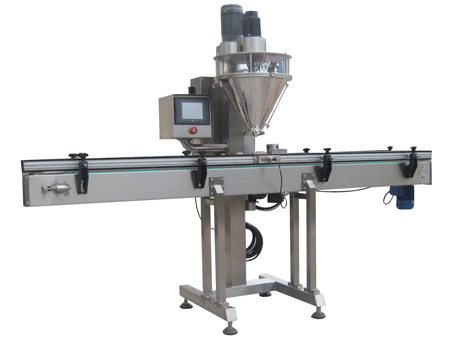

GL-2B

This machine was designed for automatic can feeding, weighing, filling and failed packs detect & delete. It�s suitable for packaging powdery & grainy product, such as: milk powder, monosodium glutamate, solid beverage, white sugar, dextrose, fodder, coffee power, solid medicament, powdery & grainy additive, dyestuff, etc.


Metering mode: Auger rotation filling (Applicable to canned packing for granule or powder)
Size of the container: Cylindrical containerf50�200MM High 50-350MM
Packing weight: 10-5000g (The screw attachment is to be changed)
Packaging accuracy: = 100g, =�1g; >100g,=�1%
Filling rate: 10-50 cans/min
Cans supply:
Power supply : 3P 380V/1P 220V 50~60HZ
Total power: 2KW
Total weight: 300kg
Overall Dimensions: 2500�800�2200MM
Hopper Volume: 50L

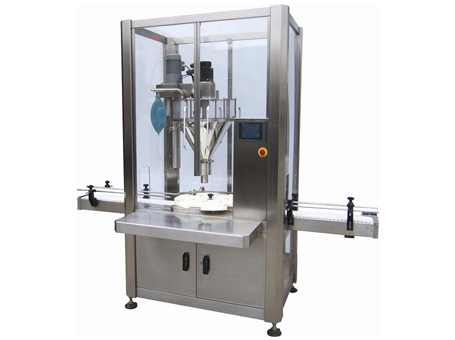

GL-2B2

This newest model of canned packing machine was designed based on our long-range experience accumulation from DCS-2B, in terms of the National GMP Standard. The design, into which was integrated the 21st century�s newest technical conception, is more reasonable, compact and consistent. Can feeding, weighing, filling and failure pack detecting & deleting can be done automatically. The machine is suitable for packaging powdery & grainy product, for instance, milk powder, rice powder, monosodium glutamate, solid beverage, dextrose, etc.


Metering mode: Auger rotation filling
Size of the container: Cylindrical containerf50�160MM High 50-350MM
Packing weight: 1-6000g (The screw attachment is to be changed)
Packaging accuracy: =1%
Filling rate: 20-50 cans/min
Power supply : 3P 380V/1P 220V
Total power: 2KW
Air pressure: 6-8kg/ cm2
Use tolerance: 0.2m3 /min
Total weight: 450kg
Overall Dimensions: 2500�1250�2300MM
Hopper volume: 50L

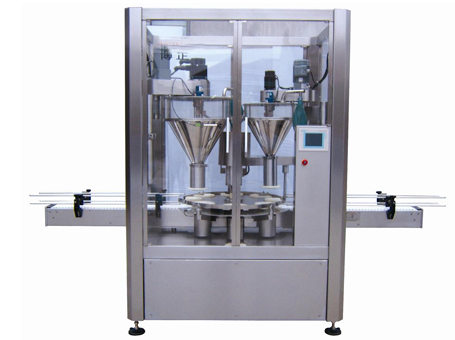

GL-2B3

This machine is equipped with two sets of dosing unit for different size: pre-dosing and complement dosing. Three sets of servo driver and Siemens color touch screen ensure the entirely improvement in precision and speed. Be applicable for packing powdery, super fine powdery products.


Metering Mode: Dual auger filling & weighing
Size of the container: Cylindrical containerf50�180MM High 50-350MM
Packing weight: 10� 5000G (The screw attachment is to be changed)
Weighing range: 1�6000G (Resolution is 01g)
Filling Accuracy: = 500g,with an error=�1.5g
500~1000g,with an error=�2.5%g
>1000g,with an error=�4g
Filling Rate: 25�55cans/min
Power supply:3P/380V(1P/220V according your requirement) 50�60Hz
Total power: 3KW.
Air pressure: 6-8kg/cm2
Use tolerance: 0.2m3/min
Total weight: 700KG
