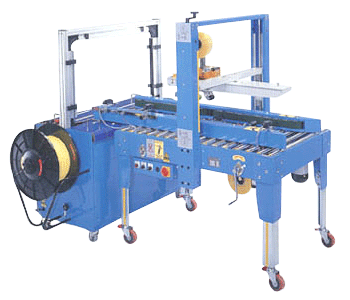

Auto Carton Sealing Machine + Fully-Automatic Strapping Machine BW-0860C + GP-553SB
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
- This system combines carton sealing machine with Fully Automatic Strapping Machine to meet the customer's needs and reduce labor costs. Design of combining these two machines together makes the job done in one process.
- Providing continues sealing and strapping offers cost effective and and dependable quality, is easy to operate and maintain.
- Carton sealing machine or auto strapping machine can be used separately.
- All-in-One design for the main head is solid and durable.
- The Aluminum Arch is specified for small cartons. The strapper can precise the strapping at the requested position.
- The brush guiding mechanism ensures the strapping at the proper position and not to slant. Brilliant performance.
- Patent tapping head prevent the OPP being folding and make the carton sealing more smoothly. Furthermore, the machine also installs two or more sets of sensors to meet the strapping needs.
- Its cushiony construction will reduce fraction while sealing cartons.
- 60 seconds auto-stop device will reduce unnecessary consumption and costs.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
- Removable aluminum arch.
- Decrease the dimensions of the package and transportation cost.
- Precisely strapping positions.
- Low damage.
Options
- If the working height is between 730 to 800mm, the casters should be placed outside.
- Detection for strap not feeding to origin or arch properly. Detection for non-strap.
- The breaker for electric leakage and safety switch.
- Option for 406Ø or 280Ø dispenser.
- Available for PET/PP.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Specification
| Model | GP-553SB |
| Power Supply | 3Ø ,220V, 380V, 440V, (50/60hZ) |
| Sealing speed | 14.2M/ per min, 1200cartons/hr(60Hz) |
| Cartons/hr | 7 cartons/ min (strap 2 for carton size is 300mm) |
| Tape width | 2" or 3" (2" or 2.5" tape also can be used in 3" tape head with paper roll) |
| Loading weight | Below 30kg |
| Shipping size | L1670 x H1010 x H1400mm (L66.7" x W39.8" x H55.1") |

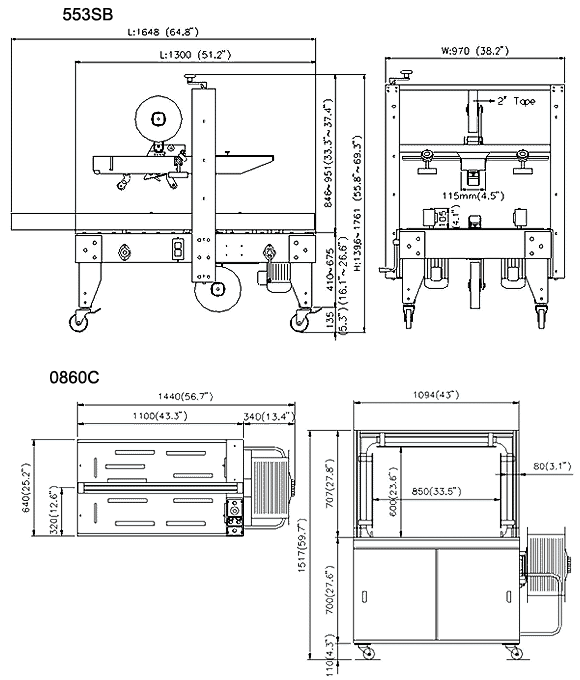

| Machine size | L1648 x H970 x H1396~1761mm (L64.8" x W38.2" x H55~69.3") |
| Net weight | 145Kg |
Specification
| Model | BW-0860BE |
| Power Supply | 3Ø ,220v,380v,440v,(50/60hZ) |
| Strap width | 9,12,15,19mm |
| Tension | 0~70kgs |
| Speed | 2.4 sec./per strap |
| Power consumption | 850W |
| Max. package size | W850 x H600mm(W33.5" x H23.6") |
| Min. package size | W100 x H30mm(W3.9" x H1.2") |
| Machine size | L1440 x W640 x H1517mm (L56.7" x W25.2" x H59.7") |
| Net weight | 210 Kg |
Note: Specifications subject to change without notice.
