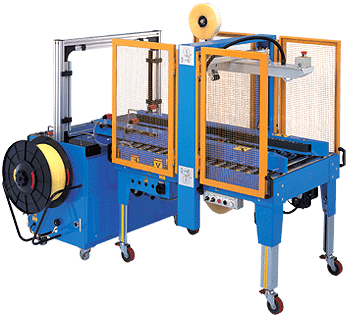

Auto Carton Sealing Machine + Fully-Automatic Strapping Machine BW-0860C + GP-553AB
Carton Sealing Machines > Automatic Strapping Machines
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
Features
- This system combines fully auto canton sealing machine with Fully-Automatic Strapping Machine to meet the customer's need and reduce labor costs. Design of combining these two machines together makes the job done in one process.
- Electrical Control adopted fast connector, easy to install and dismantle.
- Aluminum Alloy for the main head is solid and durable.
- Aluminum Arch with modular design for easier transfer.
- The brush guiding mechanism ensures the strapping at the proper position. Brilliant performance.
- Machine also installs two or more sets of sensors to meet the strapping needs.
- Fully auto adjust the width and height to meet different carton size. No need to adjust by hand.
- New tapping head incorporating a V shaped plate designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices
- Upper Taping Head adopted flexible construction, which adjust the package in automatically and reduce fraction while sealing cartons.
- 60 seconds auto-stop device will reduce unnecessary consumption and costs.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
- Removable aluminum arch.
- Decrease the dimensions of the package and transportation cost.
Options
BW-0860C
- If the working height is between 730 to 800mm, the casters should be placed outside.
- Detection for strap not feeding to origin, detection for non-strap.
- The breaker for electric leakage and safety switch.
- The standard dispenser ID is 200Ø option for 230Ø and 280Ø
- Available for PET/PP.
GP-555AB
- Extension roller table.
- Close-type roller table or extension roller table.
- Detector for no tape, fail sealing, and uncut tape.
kkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk

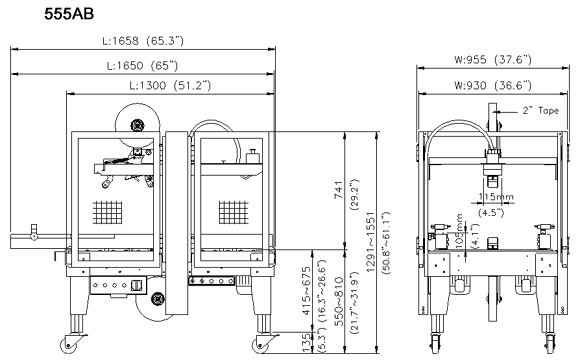

Specification
| Model | GP-555AB |
| Power Supply | 3Ø ,220V, 415V, 440V, (50/60hZ) |
| Sealing speed | 14.2M/ per min |
| Capacity | 6 cartons/ min (strap 2 for carton size is 300mm) |
| Power consumption | 450 W |
| Max sealing size | L700 x W500 x H500mm (L27.6" x W19.7" x H19.7") |
| Min seling size | L300 x W120 x H150mm (L11.8" x W4.7" x H5.9") |
| Tape width | 2" x t0.05mm x 1000y x 76Ø (ID) (3" option-2" or 2.5" also can be used in 3" tape head with paper roll) |
| Loading weight | Below 30kg |
| Machine size | L1658 x H955 x H1291~1551mm (L65.3" x W37.5" x H50.8~61.1") |
| Net weight | 262Kg |

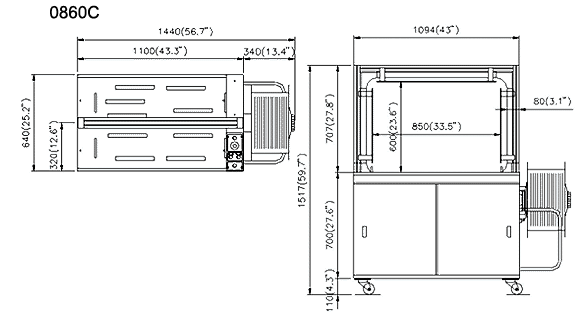

Specification
| Model | BW-0860C |
| Power Supply | 3Ø ,220v,380v,415v,(50/60hZ) |
| Strap width | 9,12,15,19mm |
| Tension | 0~70kgs |
| Speed | 2.4 sec./per strap |
| Power consumption | 850W |
| Max. package size | W500 x H500mm(W19.7" x H19.7") |
| Min. package size | W120 x H150mm(W4.7" x H5.9") |
| Machine size | L1440 x W640 x H1517mm (L56.7" x W25.2" x H59.7") |
| Net weight | 210 Kg |
Note: Specifications subject to change without notice.
