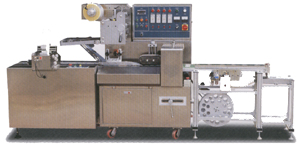

Pack Machine KDH-360SC
PACKALL MACHINES
MODEL KDH-360SC
FLOW WRAPPER FOR CARD
Applications:
Credit Card?Phone Card
| Model | KDH-360SC |
| Specifications | |
| Motor | 2HPx1pc. |
| Heating Elements | 300Wx4pcs,400Wx2pcs |
| Packaging Film | OPP, CPP, Aluminum Foil and any heat-sealable laminated fil |
| Type of Pouch | Pillow Type |
| Product Size(Max) | 50-160mm |
| Film Wide (Max) | 250mm |
| Power | 220V,Single Phase,50/60HZ |
| Product Dimension (Max.) |
400 x 170 x 80 mm |
| Film Wide | 450mm |
| Speed | 200-500 Packs/minute. |
| Power | 220V,Single Phase,50/60HZ |
| Machine Size | 2700 x 700 x 1500mm (L x W x H) |
| Machine Weight | N.W 920kgs. GW.1320kgs |
| Options | |
| 1.Auto Feeder | |
| 2.Gusset | |
| 3.Coder |
