Multilane Packaging Machinery

Our Multilane Packaging Machinery is available with piston filler to securely pack liquid and solid products such as snacks, detergents, cooking oils, shampoos and more in heat sealable protected packages. Only latest advancement is integrated in our machines’ design for completely efficient performance. In addition, simple and best electronics and mechanical components are deployed for prolong functional life of our machines. Besides, the design of our Multilane Packaging Machinery delivers consistent operation even in tough situations. Every contact component of our machines is composed of food class material. Lastly, customers can easily obtain automatic and semi-automatic grade machines from us..

Key Features:

  • Designed for power, free flowing and granular products
  • Compact machines with extended production capacity
  • Mechanical length regulation via eye mark sensor
  • Equipped with mechanical totalizer and control system

High Speed Multilane Machines: GP 600L






Suppliers and technical consultants of Automatic High Speed Multilane Machines. Our provided machines are best suitable for packing various agro, cosmetic, food, medicines and many more products. Ability to work smoothly even in harsh conditions, we fabricate these machines with the help of cutting-edge technology by making use of fine grade components at our well-equipped production unit. Moreover, these Automatic High Speed Multilane Machines can get from us in different technical specifications to meet the specific requirements of clients.

Features:

  • Sturdy construction
  • High operational fluency
  • User friendly design
  • Impeccable performance

With the help of our team of technical professionals, we are engaged in offering superior quality High Speed Multilane Machines that enhance the productivity for packaging goods. Assures that the product is properly packed and sealed, these machines are widely demanded for their smooth functioning and excellent performance. Offered machines are well manufactured with the best utilization of premium grade components and advanced technology in sync with the market norms. Clients can avail these precisely tested High Speed Multilane Machines in different technical options at affordable prices. We have gained expertise in delivering a quality range of Multilane Packaging Machines in different specifications. Our range of machines is widely demanded in the market to cater to the exact demands of several industries and sectors. These machines are widely known for their ability to work smoothly even under harsh conditions. Moreover, our team of experts fabricates these machines by using high grade raw material that ensure their durability. Multilane Machines for liquid & paste. These Multilane Machines are highly demanded in market for the quality features like low maintenance, compact in size, robust and durability. Our range of Multilane Packaging Machines is made available to the clients at industry leading prices. These products have servo pulling for quick change over, that enhance their performance. Moreover, our product range is highly demanded in the market for their notching provision, variable pouch width & length, embossing and other features.



Features:

  • Low power consumption
  • Hassle-free operation
  • Negligible maintenance
  • Longer service life

Specifications:

  • Machine Mechanism : Intermittent Motion
  • Model : AP-400/600 Liquid/Powder
  • Negligible maintenance
  • Sealing: 4-side seal
  • Rated speed: 100 strokes/min (depend upon the quantity & type of product)
  • No. of tracks: Depend upon the width of the pouch
  • Power consumption: 6 KW
  • Max. roll width: 600 mm
  • Max roll dia: 450 mm
  • Real core dia: 150 mm/76 mm
  • Max. length of Pouch: 150 mm (standard)/Up to 300 MM Maximum
  • Main motor: 2.2 KW, 3-Phase, 415 Volts
  • Net weight: 2000 kg
  • Packing limit: 0.2 ml/gm, 500 ml/gm
  • Air consumption: 2CFM@ 6 Bar
  • Temperature controller: PID based
  • Machine colour: Mulshell grey
  • Packing material: Heat saleable metalized poly and polyester poly
  • Product to be packed: Shampoo, conditioner, oil, cream, tomato ketchup, liquid and others
  • Vertical & horizontal sealing: Mechanically CAM driven/Servo Based
  • Batch cutter operation: Pneumatic/Servo Based
  • Film draw off : Clutch & brake/Servo Based
  • Film tracking: Manual/automatic
  • Control panel: Air-cooled with all applicable standards (IP 54 Grade & CAT IV Marked)

Multilane Machines Pouch Machines



Backed by our 24 years of industry experience, we are offering excellent quality Multilane Zipper Pouch Machines to our prestigious clients. The offered machines are precisely manufactured by our seasoned professionals by making use of supreme grade components and latest techniques at our technically sound production unit as per the global industry standards. Widely used for packing snacks, oil, sugar, sauces and many more, these machines are able to pack various items at high speed. Our Multilane Zipper Pouch Machines is rigorously tested on different measure to meet the set benchmark of quality.


Specifications:

  • Speed: 60-65 strokes/min 65x2=130 pouches/min
  • No. of Tracks: 2 tracks
  • Max roll width: 1200 mm
  • Max roll dia: 600 mm
  • Rated speed: 100 strokes/min (depend upon the quantity & type of product)
  • No. of tracks: Depend upon the width of the pouch
  • Power consumption: 6 KW
  • Max. roll width: 600 mm
  • Max roll dia: 450 mm
  • Real core dia: 150 mm
  • Power consumption: 6 KW
  • Packing limit: 8-100 ml/gm
  • Main motor: 2.2 KW, 3-Phase, 415 Volts
  • Overall machine size : 2100x1350x1900mm (lxwxh)
  • Net weight: 2000 kg
  • Gross weight: 2250 kg
  • Air pressure: 6 kg/cm square (dry air)
  • Air consumption: 0.5 normal litres/machine cycle
  • Packing material:Heat saleable, LLDPE, LDPE metallised Poly and laminate films.
  • Vertical & horizontal sealing: Mechanically CAM driven/Servo Based
  • Jaw drive: Mechanical cam/Servo based
  • Batch cutter operation: Pneumatic/Servo based
  • Film-Draw off: Clutch brake/Servo based
  • Film tracking: Pneumo hydraulic/Automatic web guiding system
  • PLC: Allen Bradely
  • Air-cooled with all applicable standards.
  • Notching provision given
  • Roll end sensor
  • Provision of funnels having ducting line
  • PID controller make honey well.




Multilane Packaging Machines



From our extensive range of packaging machines, we manufacture, export and supply supreme quality Multilane Packaging Machines. Highly cherished due to their hassle free operation, robustness and high production capacity, these machines are employed for packing numerous products like cosmetic, oil, food and various other products. For the fabrication of these machines, our dexterous professionals make use of premium grade components and upgraded technology. These Multilane Packaging Machines can get from us in varied technical specifications as per the application requirements of clients at reasonable rates.



Specifications:

  • M/c mechanism : Intermittent motion
  • Model : AP-800L/P
  • Sealing: 4-side seal
  • Rated speed: 100 strokes/min. (depend upon the quantity & type of product)
  • No. of tracks: Depend upon the width of the pouch
  • Power consumption: 7 KW
  • Max. roll width: 800 mm
  • Max roll dia: 450 mm
  • Real core dia: 150 mm/76 mm
  • Max. length of pouch: 150 mm (standard)
  • Main motor: 2.2 KW, 3-Phase, 415 Volts
  • Net weight: 2100 kg
  • Gross weight of machine: 2400 kg
  • Packing limit: 1 ml/gm, 500 ml/gm)
  • Air consumption: 2CFM
  • Temperature controller: PID based
  • Machine colour: Mulshell Grey
  • Packing material: Heat sealable metalized poly and polyester poly.
  • Product to be packed: Shampoo, conditioner, oil, cream, tomato ketchup, liquid, detergent, any free flow powder & granules etc.
  • Vertical & horizontal sealing: Mechanically CAM driven/Servo Based
  • Batch cutter operation: Pneumatic
  • Film draw off: Clutch & brake/Servo Based
  • Film tracking: Manual/automatic web guiding system
  • Control panel: Air-cooled with all applicable standards(IP 54 & CAT IV)



Multilane Packaging Machines



Owing to our expertise in the domain, we are involved in manufacturing, exporting and supplying wide range of Automatic Multilane Packaging Machine. Have the ability of performing 4 side sealing, this machine can easily operate by the user and it requires less maintenance. Offered machine is precisely manufactured with the utilization of optimum quality components and ultra-modern techniques at clients' premises. Besides, this Automatic Multilane Packaging Machine is offered in a plethora of specifications at market leading price.



Features:

    • High performance
    • Longer service life
    • User-friendly design
    • Easy to operate

(* Optional:-For Powder End of Line Automation)



Specifications:

  • M/c mechanism : Intermittent motion
  • Speed: 100 strokes/min
  • Sealing: 4-side seal
  • Max. roll width: 1200 mm
  • Max roll diameter: 650 mm
  • Real core diameter: 200 mm/76 mm
  • Packing limit: 0.2 gm–500 gm, 1 ml-250 ml
  • Main motor: 3.7 KW, 3-Phase, 415 Volts
  • Connected load: 10 KW
  • Net weight: 3500 kg
  • Gross weight: 4000 kg
  • Air pressure: 6 kg/cm2 (Dry Air)
  • Air consumption: 6 CFM @ 6 Bar
  • Machine colour: Mulshell grey or As desired
  • Packing material: Any Heat saleable metalized poly and laminate films
  • Product to be packed: Detergent powder, Mehndi, any free flow powder, Hair conditioner, edible oil, cream, shampoo, tomato ketchup, liquid and semi-liquid material
  • Vertical & horizontal sealing: Mechanically CAM driven/Servo Based
  • Batch cutter operation: Pneumatic
  • Film draw-Off: Servo Based
  • Film tracking: Fully automatic
  • Film roll unwinding: Motor driven
  • Film draw off: Clutch & brake/Servo Based
  • Film tracking: Manual/automatic web guiding system
  • Control panel: IP-56 CAT IV Air-cooled with all applicable standards
  • Temperature controller: PID based


End of Line Automation* (* Optional:-For Powder End of Line Automation) Pouches are everywhere. Consider a typical walk-through of a supermarket or big-box store and you' are guaranteed seeing a multitude of products packed in pouches. The format's popularity is obvious. Today, end-of-line automation can pave the way toward efficient, cost-effective methods of providing pouched products to consumers. A simple maxim covers the essence of this approach: A system that handles flexibles must be flexible. For all its appeal, however, automation isn't simply a no-brainer. Many challenges exist when utilizing or considering end-of-the-line automation technology. Pouches are "tough to handle," meaning that you should work with an experienced automation company, one that is experienced in dealing with pouches. Pouches do not have repeatable shapes, footprints, or characteristics, unlike bottles or cartons, which is where the experience factor comes in. An automated system, therefore, must be flexible and adaptable. It also must be fast and efficient, intuitive-to-operate and performed by bag-handling specialists. We provide secondary packaging / end of line automation solutions. We conceptualize the solution as per requirements. And provide total solution from design to manufacturing and product ionisation on your shop along with our standard product range.



Multilane Packaging Machines GP-1200L




We bring forth for our clients a quality array of Patented: - Multilane Packaging Machines GP-1200L at highly competitive prices. Our range of machines have the ability of performing 4 side sealing, and thus, it is highly demanded in the market. Besides, the machines are widely used in different industries and sectors as these products require minimum maintenance.




Some of the optional features of Multilane Packaging Machines:-

  • Heater Failure device
  • Accessories pouch seal burst unit
  • Pouch width & length variable, notching provision, embossing & others

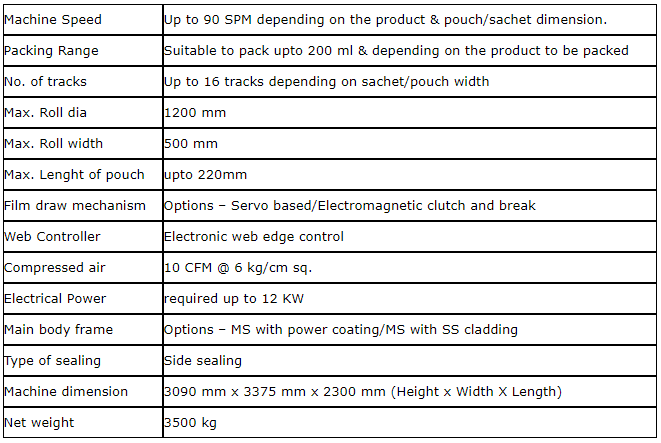

Technical Specifications of GP 1200L Multilane Packaging Machines:-

Technical Specifications of GP 1200L Multilane Packaging Machines:-
